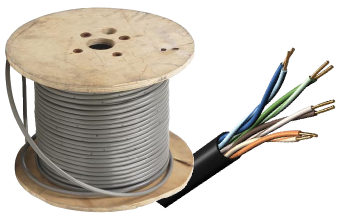

Industrial Cables
Our flexible cables are used in diverse industrial applications where high voltage maintenance is required.
Features
- Eco friendly
- Weather proof
- Easy to Install
- High operational efficiency
- High temperature resistance
- Higher voltage conducting capacity
Applications
- Instrumental industry
- Power industry
- Refining and petrochemical industry
- Automation industry
- Natural gas production sectors
Qty / Box : As per requirment
`
| Number of Cores | Nominal Thickness Of Insulation mm. | Min. Thickness of Inner Sheath mm. | Armour | Nominal Sheath Thickness unarmoured mm. | Nominal Sheath Thickness Armoured mm. | Approx. Overall Diameter | Approx. Weight of Cable | Max. DC Conductor Resistance at 20 C Ohm. Km. | Current Ratings | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galv. Round Steel Wire Nom. Dia. mm. | Galv. Flat Steel Strip Nom. Thick mm. | Unarm oured mm. | Armoured Armoured mm. | Unarm oured mm. | Armoured mm. | Direct Ground Amps | In Ducts Amps | In Air Amps | ||||||
| 2 | 0.8 | 0.3 | 1.4 | - | 1.80 | 1.24 | 11.5 | 14.0 | 130 | 350 | 12.1 | 23 | 20 | 20 |
| 3 | 0.8 | 0.3 | 1.4 | - | 1.80 | 1.24 | 12.0 | 14.5 | 160 | 400 | 12.1 | 21 | 17 | 17 |
| 4 | 0.8 | 0.3 | 1.4 | - | 1.80 | 1.24 | 13.0 | 15.0 | 190 | 450 | 12.1 | 21 | 17 | 17 |
| 5 | 0.8 | 0.3 | 1.4 | - | 1.80 | 1.24 | 14.0 | 16.0 | 225 | 500 | 12.1 | 16 | 14 | 14 |
| 6 | 0.8 | 0.3 | 1.4 | - | 1.80 | 1.24 | 15.0 | 17.0 | 250 | 550 | 12.1 | 15 | 13 | 13 |
| 7 | 0.8 | 0.3 | 1.4 | - | 1.80 | 1.24 | 15.0 | 17.0 | 265 | 565 | 12.1 | 14 | 13 | 13 |
| 10 | 0.8 | 0.3 | 1.4 | - | 1.80 | 1.40 | 18.0 | 20.5 | 350 | 750 | 12.1 | 13 | 11 | 11 |
| 12 | 0.8 | 0.3 | - | 0.8 | 1.80 | 1.40 | 18.5 | 19.5 | 400 | 650 | 12.1 | 12 | 10 | 10 |
| 14 | 0.8 | 0.3 | - | 0.8 | 1.80 | 1.40 | 18.5 | 20.5 | 450 | 760 | 12.1 | 12 | 10 | 10 |
| 16 | 0.8 | 0.3 | - | 0.8 | 1.80 | 1.40 | 20.5 | 21.5 | 500 | 800 | 12.1 | 11 | 9 | 9 |
| 19 | 0.8 | 0.3 | - | 0.8 | 2.00 | 1.40 | 22.0 | 22.5 | 600 | 850 | 12.1 | 10 | 9 | 9 |
| 24 | 0.8 | 0.3 | - | 0.8 | 2.00 | 1.40 | 25.0 | 25.5 | 725 | 1050 | 12.1 | 9 | 8 | 8 |
| 30 | 0.8 | 0.3 | - | 0.8 | 2.00 | 1.40 | 26.0 | 27.5 | 860 | 1200 | 12.1 | 9 | 7 | 7 |
| 37 | 0.8 | 0.3 | - | 0.8 | 2.00 | 1.40 | 28.0 | 28.5 | 1050 | 1400 | 12.1 | 8 | 7 | 7 |
| 61 | 0.8 | 0.4 | - | 0.8 | 2.00 | 1.56 | 35.0 | 36.5 | 1650 | 2100 | 12.1 | 7 | 6 | 6 |
| 'PC-CAB' 1.1 KV Annealed High Conductivity Solid Copper Conductor, 2.5 Sq. mm PVC Insulated, Inner Sheathed, Armoured PVC Sheathed Control Cable as per IS : 1554 (part 1) | ||||||||||||||
| 2 | 0.9 | 0.3 | 1.4 | - | 1.8 | 1.24 | 13.0 | 15.0 | 160 | 425 | 7.41 | 32 | 27 | 27 |
| 3 | 0.9 | 0.3 | 1.4 | - | 1.8 | 1.24 | 14.0 | 16.0 | 225 | 475 | 7.41 | 27 | 24 | 24 |
| 4 | 0.9 | 0.3 | 1.4 | - | 1.8 | 1.24 | 14.50 | 17.0 | 250 | 530 | 7.41 | 27 | 24 | 24 |
| 5 | 0.9 | 0.3 | 1.4 | - | 1.8 | 1.24 | 15.50 | 18.0 | 300 | 600 | 7.41 | 27 | 24 | 24 |
| 6 | 0.9 | 0.3 | 1.4 | - | 1.8 | 1.24 | 17.0 | 19.0 | 340 | 675 | 7.41 | 20 | 18 | 18 |
| 7 | 0.9 | 0.3 | 1.4 | - | 1.8 | 1.24 | 17.0 | 19.0 | 375 | 700 | 7.41 | 20 | 17 | 17 |
| 10 | 0.9 | 0.3 | - | 0.8 | 1.8 | 1.40 | 20.5 | 22.0 | 500 | 780 | 7.41 | 18 | 15 | 15 |
| 12 | 0.9 | 0.3 | - | 0.8 | 2.0 | 1.40 | 21.0 | 22.5 | 600 | 850 | 7.41 | 17 | 14 | 14 |
| 14 | 0.9 | 0.3 | - | 0.8 | 2.0 | 1.40 | 22.5 | 23.5 | 650 | 950 | 7.41 | 16 | 13 | 13 |
| 16 | 0.9 | 0.3 | - | 0.8 | 2.0 | 1.40 | 23.5 | 24.5 | 750 | 1050 | 7.41 | 15 | 13 | 13 |
| 19 | 0.9 | 0.3 | - | 0.8 | 2.0 | 1.40 | 24.5 | 25.5 | 850 | 1150 | 7.41 | 14 | 12 | 12 |
| 24 | 0.9 | 0.3 | - | 0.8 | 2.0 | 1.40 | 28.5 | 29.5 | 1050 | 1400 | 7.41 | 13 | 111 | 111 |
| 30 | 0.9 | 0.3 | - | 0.8 | 2.0 | 1.56 | 30.5 | 31.5 | 1250 | 1700 | 7.41 | 12 | 10 | 10 |
| 37 | 0.9 | 0.4 | - | 0.8 | 2.2 | 1.56 | 32.5 | 33.5 | 1550 | 2000 | 7.41 | 11 | 10 | 10 |
| 61 | 0.9 | 0.4 | - | 0.8 | 2.2 | 1.56 | 40.5 | 41.5 | 2450 | 3100 | 7.41 | 9 | 8 | 8 |
