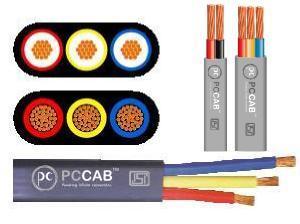

Submersible Flat Cable
This Cable is manufactured by maintaining highest level of quality parameters from its raw material till final testing. EC Grade Copper & 100 % virgin PVC Material are key input factor for our submersible pump cable, strong quality check at every stage of manufacturing makes our submersible flat cable a safest in this segment.
Features
- Long Lasting
- High Performing
- Ability to resist moisture, grease and abrasion
- Flexible
- High efficiency
- Sturdiness
- Built with high quality wet electrical features
- Temperature range – 40 °C to 105 °C
- Possesses conductors with formulated PVC compounds
Applications
- Aquariums
- Sewage treatment plants
- Water supply plants
- Irrigation industry
- Deep boring wells
Qty / Box : As per requirment
| 3 Core PVC Submersible Flat Copper Conductor Cable Up To 1100 V. As PER Is 694: 1990 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Conductor | PVC Insulation | PVC Sheath | Current Rating At 40°C In Amps. | Max. D/C Resistance @ 20°C Ohm. / Km. | ||||
| Nominal c/s Area Of Conductor In Sq. mm. | Conductor Construction No. / mm. | Nominal Insulation Thickness in mm. | Approx. Core Dia. In mm. | Nominal Thickness In mm. | Overall Dimensions | |||
| Height mm. | Width mm. | |||||||
| 1.00 | 14/0.3 | 0.7 | 2.7 | 0.9 | 5.00 | 10.40 | 11 | 18.10 |
| 1.50 | 22/0.3 | 0.7 | 3.2 | 0.9 | 5.40 | 12.00 | 14 | 12.10 |
| 2.50 | 36/0.3 | 0.8 | 3.6 | 1.0 | 6.10 | 13.85 | 18 | 7.41 |
| 4.00 | 56/0.3 | 0.8 | 4.2 | 1.1 | 7.15 | 15.80 | 26 | 4.61 |
| 6.00 | 84/0.3 | 0.9 | 5.3 | 1.2 | 8.20 | 18.90 | 31 | 3.08 |
| 10.00 | 140/0.3 | 1.0 | 6.7 | 1.4 | 10.30 | 23.60 | 42 | 1.83 |
| 16.00 | 225/0.3 | 1.0 | 8.0 | 1.4 | 12.40 | 27.50 | 57 | 1.15 |
| 25.00 | 354/0.3 | 1.2 | 10.2 | 2.0 | 15.70 | 36.50 | 72 | 0.727 |
| 35.00 | 490/0.3 | 1.2 | 11.7 | 2.0 | 17.20 | 40.50 | 90 | 0.524 |
| 50.00 | 700/0.3 | 1.4 | 13.9 | 2.2 | 19.30 | 46.50 | 115 | 0.387 |
